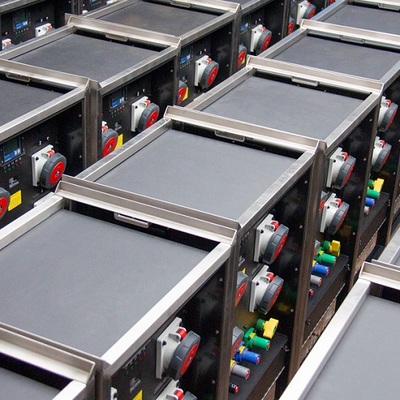

The PDUs of this series are mounted in a stainless steel or aluminum frame. The frame can be equipped with features such as forklift skids, eyelets, or wheels, according to customer preferences. Particularly advantageous for outdoor use are the stand feet, useful when the distro needs to be placed in snow, mud, or puddles. Primarily designed as main PDUs, these Power Distribution Boxes, made from THERMOLENE® and integrated into a metal frame, offer a maximum range of configuration options, operational reliability, and robustness. Thanks to our in-house metalworking facility, we are always able to offer customized aluminum or stainless-steel frames tailored to individual customer needs, even at short notice. Feel free to contact us!
Metal framed PDUs
Displaying 1 to 3 (of 3 products)
1
THERMOLENE® 3-way Powerlock splitter in V2A stainless steel frame
Input:
- Powerlock 3P+N+PE
- 1x Main-MCCB 400A 4P + Shunt
- 1x RCDM adjustable
- 1x key switch
- 5-segment LED display
Output:
- 2x Powerlock 3P+N+PE
Extras:
1x 200A earth stud, 1x digital multimeter
- item number
- 11403806
- ready for shipping:
- on request
- weight:
- 90.00 kg
- size (LxWxH):
- 602 x 510 x 760mm
THERMOLENE® Tourpack distribution box in aluminium frame
Input:
- Powerlock 3P+N+PE
- 1x MCCB 400A 4P
- 1x RCD, adjustable
- 1x key switch
Output:
- 3x Powerlock 3P+N+PE
- looped
- 1x CEE 63A 400V 5P
- 1x MCB 63A C 3P
- 1x RCD, adjustable
- 1x key switch
- 1x CEE 16A 230V 3P
- 1x RCBO 16A C 30mA 2P
- 2x Schuko (or BS13)
- 2x RCBO 16A C 30mA 2P
Extras:
1x digital multimeter, 1x M12 earth stud, 2xUSB Charger, 2x LED strips with switch
- item number
- 11409797
- ready for shipping:
- on request
- weight:
- 73.00 kg
- size (LxWxH):
- 610 x 610 x 710mm
THERMOLENE® main PDU 400A in V2A stainless steel frame
Input:
Powerlock 3P+N+PE with covers
- 1x Main MCCB 400A/4P + Shunt
- 5-segment LED display
Output:
Powerlock 3P+N+PE with covers
- looped
3x CEE 125A 400V 5P with pilot pin
- 3x MCCB 125A 4P + Shunt
- multi-channel RCM (each channel individually)
5x CEE 63A 400V 5P with pilot pin
- 5x MCB 63A 4P + Shunt
- multi-channel RCM (each channel individually)
8x CEE 32A 400V 5P
- 8x MCB 32A C 3P+N + Shunt
- multi-channel RCM (each channel individually)
3x CEE 32A 230V 3P
- 3x RCBO 32A C 30mA 1P+N
6x CEE 16A 230V 3P
- 6x RCBO 16A C 30mA 1P+N
Extras:
2x fan, 1x digital multimeter, 1x earth stud M12, 1x main stop
Power Distribution Unit in a V2A stainless steel frame with additional transport protection.
- item number
- 11503620
- ready for shipping:
- immediately available (0 in stock)
- weight:
- 140.00 kg
- size (LxWxH):
- 602 x 510 x 1458mm
