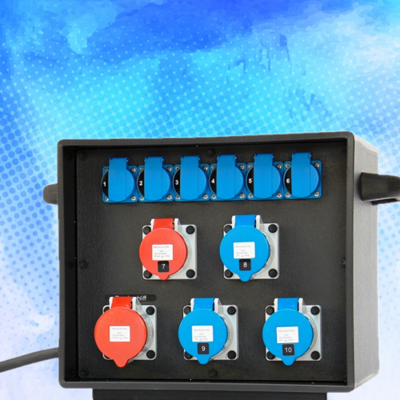

mobile distribution boxes

Users in over 68 countries worldwide appreciate the ruggedness, dependability, design and lifespan of our power distribution boxes. Their layout is designed for ease of use, with the power outlets at the front and circuit-breakers at the back. The housing’s edges protrude by 50 to 80 mm to protect outlets and circuit-breakers from physical damage.

Input:
- CEE 32A 400V 5P with 2m 5G6 H07 RN-F
     - 3-segment LED display red

Output:
- 2x CEE 16A 400V 5P
     - 2x MCB 16A C 3P
- 6x Schuko
     - 6x MCB 16A C 1P
     - 1x RCD 40A 30mA 4P

item number
11405238
ready for shipping:
immediately available (6 in stock)
weight:
12.00 kg
size (LxWxH):
400 x 310 x 240mm

Input:
- CEE 32A 400V 5P with 2m 5G6 H07 RN-F

Output:
- 1x CEE 32A 400V 5P
     - looped
- 1x CEE 16A 400V 5P
     - 1x MCB 16A C 3P
- 3x CEE 32A 230V 3P
     - 3x MCB 32A C 1P
- 6x Schuko
     - 6x MCB 16A C 1P

CEE 16A 400V 5P, CEE 32A 230V 3P and Schuko
     - additional protection: 1x RCD 40A 30mA 4P

item number
11411988
ready for shipping:
immediately available (10 in stock)
weight:
16.00 kg
size (LxWxH):
400 x 330 x 340mm

Input:
- CEE 32A 400V 5P with 2m 5G6 H07 RN-F

Output:
- 2x CEE 16A 400V 5P
     - 2x MCB 16A C 3P
- 3x Schuko
     - 3x MCB 16A C 3P
- additional protection outputs:
     - 1x RCD 40A 30mA 4P

item number
11407611
ready for shipping:
June 2024
weight:
9.50 kg

Input:
- CEE 63A 230V 3P

Output:
- 1x CEE 63A 230V 3P
     - looped
- 3x CEE 32A 230V 3P
     - 3x RCBO 32A C 30mA 2P
- 6x CEE 16A 230V 3P
     - 6x RCBO 16A C 30mA 2P
- 1x 19-pin
     - parallel protectet with CEE 16A 230V 3P

Extras:
LED indication for each outlet

item number
11411915
ready for shipping:
immediately available (1 in stock)
weight:
15.60 kg
size (LxWxH):
500 x 300 x 280mm

Input:
- CEE 63A 400V 5P with 2m 5G16 H07RN-F
     - 1x RCD 63A 30mA 4P

Output:
- 2x CEE 32A 400V 5P
     - 2x MCB 32A C 3P
- 2x CEE 16A 400V 5P
     - 2x MCB 16A C 3P
- 3xSchuko
     - 3x MCB 16A C 1P

item number
11407610
ready for shipping:
immediately available (10 in stock)
weight:
19.00 kg
size (LxWxH):
400 x 330 x 340mm

Input:
- CEE 63A 230V 3P
     - 1x MCB 63A C 1P+N
     - 1 segment LED display

Output:
- CEE 63A 230V 3P
     - looped
- 2x CEE 32A 230V 3P
     - 2x MCB 32A C 1P
- 4x CEE 16A 230V 3P
     - 4x MCB 16A C 1P

item number
11400545
ready for shipping:
June 2024
weight:
23.00 kg
size (LxWxH):
305 x 280 x 270mm
